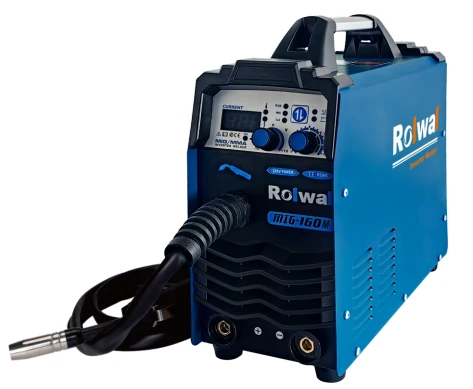

140 Amp Mig Welder

Name: China Customized 140 Amp Mig Welder - Buy Discount 140 Amp Mig Welder for Sale - Lewei Pumps
Brand: Rolwal
SKU: 244837401

The machine produces smooth accurate work, by combining three functions MIG/MAG/MMA into one unit. It has an advanced protective circuit, a state-of-the-art single roller bearing, an all-metal wire drive, and precise digital controls for both voltage and current, as well as infinite weld strength adjustments.

Send Inquiry

Product Introduction

Lewei Pumps Industry Co., Ltd. is one of the leading manufacturers and suppliers of 140 amp mig welder in China, also supports customized service. Please feel free to wholesale advanced 140 amp mig welder for sale here from our factory. Quality products and reasonable price are available.

Rolwal's multi function welders are featured packed, compact, synergic multi process welders.

Key Features

2MM maximum weld thickness on mild steel
20A - 140A/160A output
China made MIG welding machine
Power factor correction
1KG wire reel capacity
220V input supply
Fully synergic control
1 year warranty

Features include

Portable MIG Welder

MIG/MAG/MMA

Flexible Voltage

- Enables the machine to run on a unstable power supply from 55V to 230V

Synergic Interface

- Simply program the machine which material you are welding, which diameter wire you are using along with gas type and thickness of material being welded and the machine will dial in your settings for you

MMA Function

- Capable of welding mild steel, stainless steel and cast iron welding electrodes up to 3.2MM diameter.

Power Factor Correction

- Allows for 140A output on a 20A domestic input supply

Products Parameter

Products model	MIG-160M	MIG-180M
Processes:	DC MIG/MAG, MMA, FLUX-cored welding	DC MIG/MAG, MMA, FLUX-cored welding
Products material	ABS+Steel castings	ABS+Steel castings
Operating voltage	1-Phase 220-240v	1-Phase 220-240v
Frequency	50/60Hz	50/60Hz
Duty cycle	MIG 140A-60%, MMA140A-60%	MIG 160A-@60%,MMA-160A-60%
Welding Wire	Ø MIG: 0.6-0.8mm	Ø MIG: 0.6-1.0mm
Electrode diameter	MMA: 1.6-3.2mm	MMA: 1.6-4.0mm
Housing protection degree:	IP21S	IP21S
Wire feed unit MIG:	2 rolls (1 with drive)	2 rolls (1 with drive)
Welding wire diameter:	0,6mm / 0,8mm	0,6mm / 0,8mm / 1,0mm
Dimensions (LxWxH):	480x280x390mm	480x280x390mm

Products Consumables

MIG Consumables
Various size Flux Core Drive Rolls
Clamp and Tool Kit
Different MIG Guns

Suitable for Using

Welding Repair
Automotive/Muffler shops
Motorsports
Construction
Fabrication
Factory maintenance

What's in box

MIG Gun with 3m cable and Euro style quick connector
Stick Electrode Holder with welding cable
Ground Clamp with welding cable
Ar/CO2 Regulator with Hose
Mask/Brush/Manual
