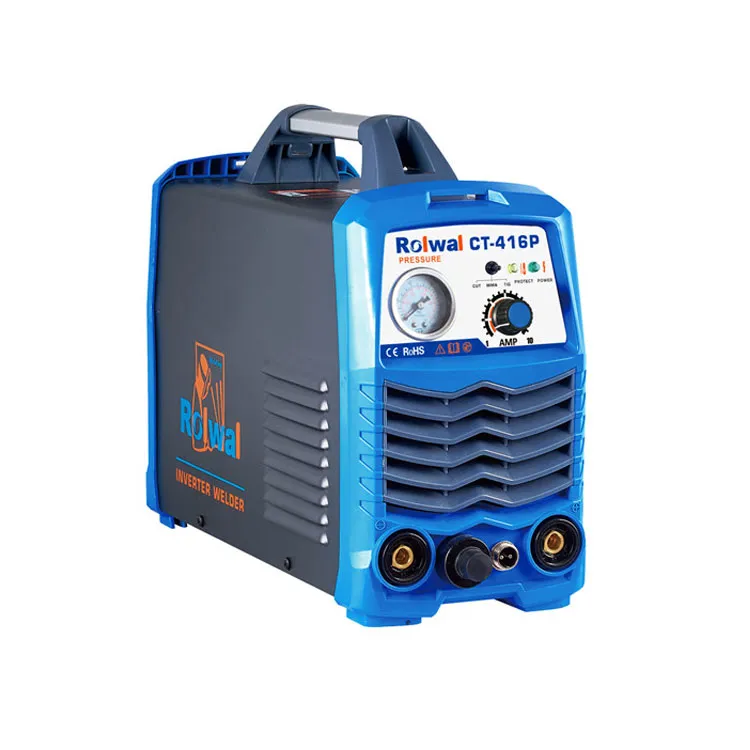

Multifunctional Plasma Cutter Machine

1.Adopt with advanced IGBT inverter technology.
2.Simple operation, smooth cutting surface.
3.Suitable for cutting stainless steel, copper, iron and aluminum metal etc.

Send Inquiry

Product Introduction

Lewei Pumps Industry Co., Ltd. is one of the leading manufacturers and suppliers of multifunctional plasma cutter machine in China, also supports customized service. Please feel free to wholesale advanced multifunctional plasma cutter machine for sale here from our factory. Quality products and reasonable price are available.

The multifunctional plasma cutter machine using the latest IGBT technology, is an exceptional machine that is suitable for a wide range of applications including sheet metal fabrication, light industrial use, site work, automotive, ducting work, repair and maintenance services.

The multifunctional plasma cutter machine is equipped with a high quality plasma torch,affords common starting of the cut with powerful, fast and accurate cutting capability, additional is the benefit of longer life cycle consumable electrodes and cutting tips.

Technical Data

Product Model:	CT-312P			CT-416P
Product Model:	CUT	TIG	MMA	CUT	TIG	MMA
Rated Input Voltage:	1phase, 220V +/- 15%			1phase, 220V +/- 15%
Input Capacity:	5.0KVA	5.0KVA	5.0KVA	7.0KVA	7.0KVA	7.0KVA
Frequency:	50/60Hz			50/60Hz
No-load Voltage:	240V	70V	70V	240V	70V	70V
Rated Duty Cycle:	60%	60%	60%	60%	60%	60%
Efficiency:	85%	85%	85%	85%	85%	85%
Power Factor:(cosφ)	0.93	0.93	0.93	0.93	0.93	0.93
Class of Insulation:	F	F	F	F	F	F
Protection Level:	IP21	IP21	IP21	IP21	IP21	IP21
Output Current:	20-30A	20-120A	20-120A	20-40A	20-160A	20-160A
Cutting thickness(mm):	1-35			1-50
Welding Rod(mm):		1.6-3.2	1.6-3.2		1.6-4.0	1.6-4.0
Package Dimension:	490x300x330mm			490x300x330mm
Packing:	CARTON			CARTON
Package Weight:	12KG			14KG

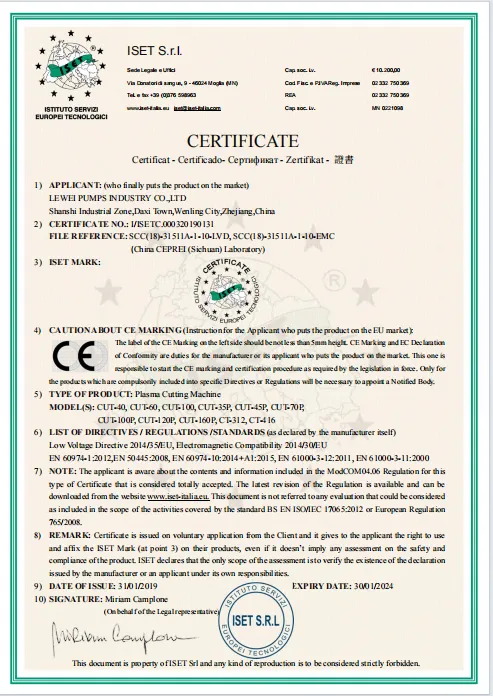

Certification

FAQ

Q: Can a CUT Welding Machine be used for precision cutting?

A: Yes, CUT Welding Machines can be used for precision cutting, especially when equipped with CNC (Computer Numerical Control) capabilities. CNC-controlled machines ensure accurate and repeatable cuts.

Q: What maintenance is required for a CUT Welding Machine?

A: Regular maintenance includes cleaning the machine after each use, checking and replacing consumables (such as electrodes and nozzles) when necessary, and ensuring proper gas supply and pressure.

Q: How thick of a material can a CUT Welding Machine cut?

A: The cutting capacity of a CUT Welding Machine depends on its power output and other specifications. Generally, they can cut materials ranging from a few millimeters to several inches in thickness.
