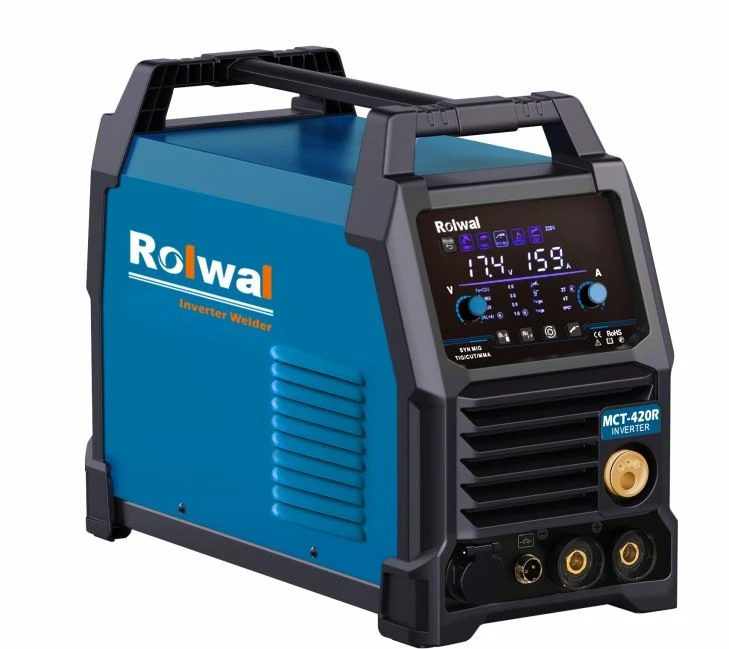

LCD Screen All in One MIG/MMA/TIG/CUT
LCD Screen All in One MIG/MMA/TIG/CUT

LCD Screen All in One MIG/MMA/TIG/CUT

MMA/MIG/TIG/CUT Four-in-one Argon Arc Cutting Welding Machine offers several notable advantages. It combines three essential functions into one compact unit, namely Argon Arc welding, cutting, and standard welding. This versatility makes it highly efficient for various welding tasks, reducing the need for multiple machines and saving workspace.

Send Inquiry

Chat Now

Product Introduction

Product Description

01.

Intelligent LCD screen

Easy to read and change the output current parameters, which enhances welders. This screen has a larger field of view, a higher sense of technology and better clarity.

02.

Safety & Powerful Welder

Utilizes MCU and IGBT inverter technology, and powerful arcs provide smoother welding and deep penetration. The welder comes with overcurrent protection, overheat protection.

03.

Four modes

Flux Core MIG/Gas MIG/ARC/TIG/CUT. Output current 10-200A is suitable for welding carbon and stainless steel. Ideal for home DIY, outdoor repair, rusty metal, farm and road maintenance and repair.

04.

programming instruction

Automatic compensation for voltage fluctuation, over current protection, over load protection.

Only weigh 16KG, it's very convenient to take it everywhere.

comparison of product parameters

Products model	MCT-418R	MCT-420R
Processes:	DC MIG/MAG, MMA, TIG,CUT	DC MIG/MAG, MMA, TIG,CUT
Products material	ABS+Steel castings	ABS+Steel castings
Operating voltage	1-Phase 220-240v	1-Phase 220-240v
Frequency	50/60Hz	50/60Hz
Duty cycle	MIG 160A-60%	MIG 200A-@60%
Wire coils	Ø MIG: 100-200mm	Ø MIG: 100-200mm
Electrode diameter	MMA: 1.6-4.0mm	MMA: 1.6-5.0mm
Housing protection degree:	IP21S	IP21S
Wire feed unit MIG:	2 rolls (1 with drive)	2 rolls (1 with drive)
Welding wire diameter:	0,6mm / 0,8mm / 0,9mm / 1,0mm (0,8/1,0mm)	0,6mm / 0,8mm / 0,9mm / 1,0mm (0,8/1,0mm)
Dimensions (LxWxH):	510x305x390mm	510x305x390mm
