MIG Syn Welding Machine With Lcd Display
Lewei Pumps Industry Co., Ltd. is one of the leading manufacturers and suppliers of mig syn welding machine with lcd display in China, also supports customized service. Please feel free to wholesale advanced mig syn welding machine with lcd display for sale here from our factory. Quality products and reasonable price are available.
Features:
MIG MAG welding
Direct current (DC) gas protection welding with inert gas "MIG welding" (e.g. – argon) or with active gas "MAG welding" (a mixture of carbon dioxide CO2 and argon)
Welding with FLUX cored wire
Welding with FLUX cored wire (welding without protective gas)
Synergic MIG MAG
Variant of pulse MIG MAG welding, where the welding parameters are already preprogrammed
MMA
Electrode welding up to 185A or 205A
Digital display
Digital control of the individual welding parameters
Inverter
Modern IGBT technology, which provides high power and long duty cycle
Data Table
| Products name | Synergic MIG/MMA weld | Synergic MIG/MMA welder |
| Products model | MIG-185RL | MIG-205RL |
| Processes: | DC MIG/MAG, MMA, P LIFT TIG | DC MIG/MAG, MMA, LIFT TIG |
| Operating voltage | 1 Phase 220v-240V | 1 phase 220v-240v |
| Frequency | 50-60hz | 50-60hz |
| Duty cycle | 185A@60% | 205A@60% |
| Wire coils | Ø MIG: 100mm or 200mm | Ø MIG: 100mm or 200mm |
|
Wire Ø |
MIG: 0.6mm / 0.8mm / 0.9mm / 1.0mm | MIG: 0.6mm / 0.8mm / 0.9mm / 1.0mm |
| Housing protection degree: | IP21S | IP21S |
| Cooling: | FAN | FAN |
| Electrode diameter | MMA:1.6-4.0mm | MMA:1.6-5.0mm |
| Dimensions | 470x220x350mm | 470x220x350mm |
Synergic MIG MAG Welding
Synergic MIG (GMAW) welding is a variant of MIG welding, and the most common method- simply because it's the easiest way for welders to set good welding parameters. Always ensure the best welding result by creating a strong and homogeneous weld using the Synergic function!
In modern welding processes, the arc quality has been continuously improved and optimized. In order to achieve this quality, many parameters must be particularly well matched to each other, but this is enormously difficult to achieve with manual adjustment.Thanks to the Synergic function, these parameters are pre-programmed depending on the wire diameter and gas combination, which makes welding easier and ensures an optimal weld.
Universal device for beginners or professionals
Synergic inverter welding machine MIG-185RL and 205RL are the very attractive synergic welder that offers complete control when setting all welding parameters with its clear and feature-rich digital display.
The unit is built to be very efficient and robust, and at 15 kilograms, it is also extremely lightweight, which also translates to its greater durability. There is also a carrying handle on the top of the unit, which helps you be ready wherever you are by making it easy to transport.
Whether you're a DIYer or a professional, this 3-in-1 unit will help you easily master all welding tasks, including FLUX-cored welding. The high-quality 3-meter hose package and electrode holder and ground clamp provide you with enough mobility to enjoy the best working comfort.

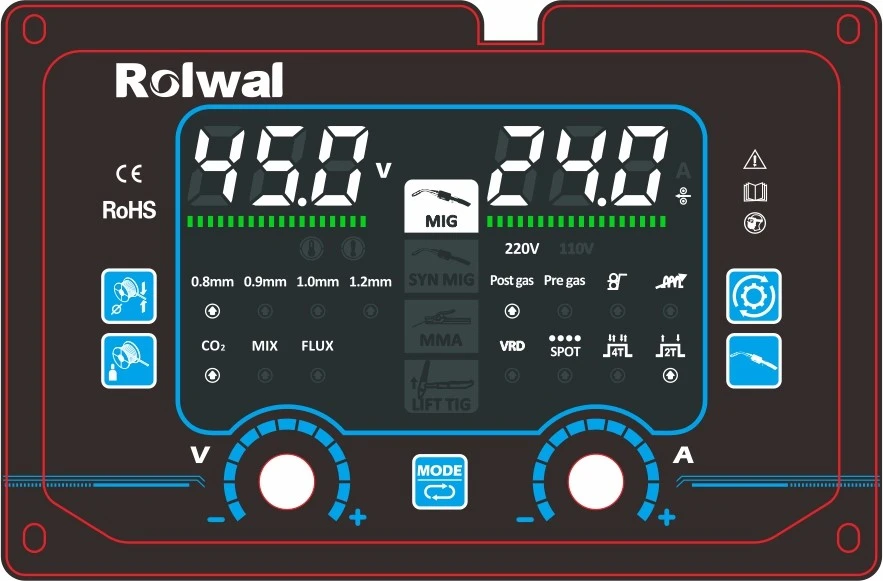

On the control panel, you can set the following welding parameters depending on the wire diameter and gas combination:
- Wire feed speed
- Welding current for MIG MAG / MMA / LIFT TIG
- Protection gas selection: CO2 / Argon / FLUX cored wire (without gas)
- Welding wire diameter (mm): 0.8 / 0.9/ 1.0
- Fast Wire feed
- 2T / 4T operating mode
- Ind – Inductance (concentration of the arc)
- Arl – arc length (adjustable deviation of voltage)
- VRD – (Safety function: lowering the open circuit voltage)
- MMA functions: Built-in Hot Start / Arc Force / Anti Stick
Wire feed
The MIG 185RL and 205RL are equipped with a high-quality metal wire feeder, which grips 2 rolls of max. 200mm diameter with a wire diameter of 0.8 – 1.0mm. At the same time, one of the rollers of the wire feeder is also motor-driven, which guarantees you a smooth and controlled wire feed. The device also has a wire drive button, with which you can push the welding wire up to the torch very fast when changing it.
FLUX cored welding
Flux-cored welding is a process that combines good handling, flexibility and cost-effective equipment. Flux cored wire allows you to produce fine and consistent welds in a short time and has the advantage that no additional protection gas is needed. To convert to flux cored welding, you only need to change the polarity, which can be easily reversed; simply swap the polarity of the gun and the ground cable to the negative pole.
Rolwal quality!
Today, Rolwal equipment is synonymous with many years of experience, continuous development in the field of MIG TIG welders and plasma cutters, as evidenced by thousands of satisfied customers. Take a look at our range of Rolwal equipment, we will be glad to help you with your choice!
SCOPE OF DELIVERY
- 1x 3 in1 welding machine
- 1x MIG hose package 15AK or 24KD with accessories 3m
- 1x Electrode holder 1.8m
- 1x Ground clamp 1.2m
- 1x Welding shield
- 1x Slag hammer with brush
- 1x Instruction manual
